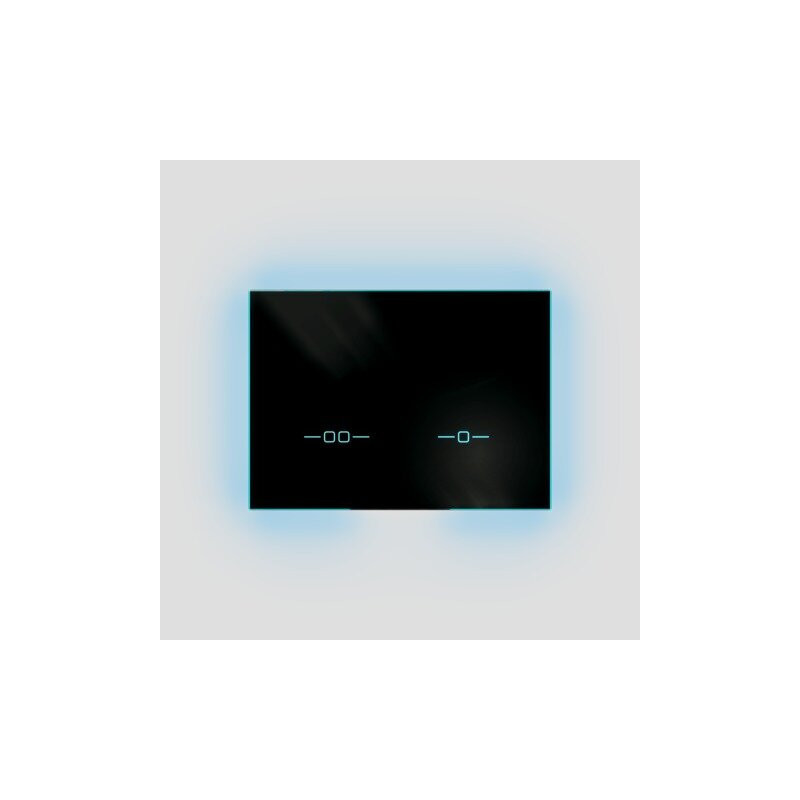

Ovládací tlačítko SANIT INEO SCOP maloformátové bovdenové s IR ovládáním 2V bezdotykové - černá

SAN16746C80000
25 424,00 Kč
S DPH
Počet
Na objednávku Obvykle do 21 dní na skladě

Popis

Push plate INEO SCOP with functional and corona lighting contact free dual flush l/w/h: 220/160/15 mm, glass, for concealed cisterns with small access ope-ning CC-121-S-FO-2V-2C and CC-121-S-UO-2V-2C, front operated, hygienic, touch-free infrared sensor controlled WC dual flush system, for WC elements INEO, user recognition via IR long range sensors, dual flush controlled by short range infrared sensors, inviting function by corona lighting and user-leading light functions, 7 light colours can be selected, consisting of glass flush plate with infrared sensors, LED lighting, control electronics, low-noise low-voltage motor as lifting device, support frame, fixing bolts and securing screw, dual flush valve INEO, with low-voltage plug for unequivocal installa-tion, voltage input: with cable and plug for unequivocal installation, output: cable and encoded plug for unequivocal installation for power supply and potential free inputs for further electronic components of BMS, with bra-cket for low-voltage motor, with compact power adapter 230 V AC / 6 V DC, with installation and operating instructions, packed in a box Parameters: - Long sensor range approx. 1500 mm - Short sensor range approx. 60 mm - Length/width 220 x 160 mm - Height above tiles 15 mm - Power supply 230V AC mains - Defined flush volumes adjustable via flush valve INEO - Automatic compulsory flush / hygiene flush interval freely selectable Versatile, easy parameter setting via remote maintenance and service control and directly on the push plate by infrared functionality. Material/colour: glass/black

Accessories:

- service and maintenance remote control code no. 03.806.00..0000 - concealed installation module code No. 03.933.00..0000

Detaily produktu
SAN16746C80000

Parametry

Materiál
sklo
Barva
Černá
Doba dodání
Obvykle do 21 dní na skladě
